NISE3600E

CPU規格

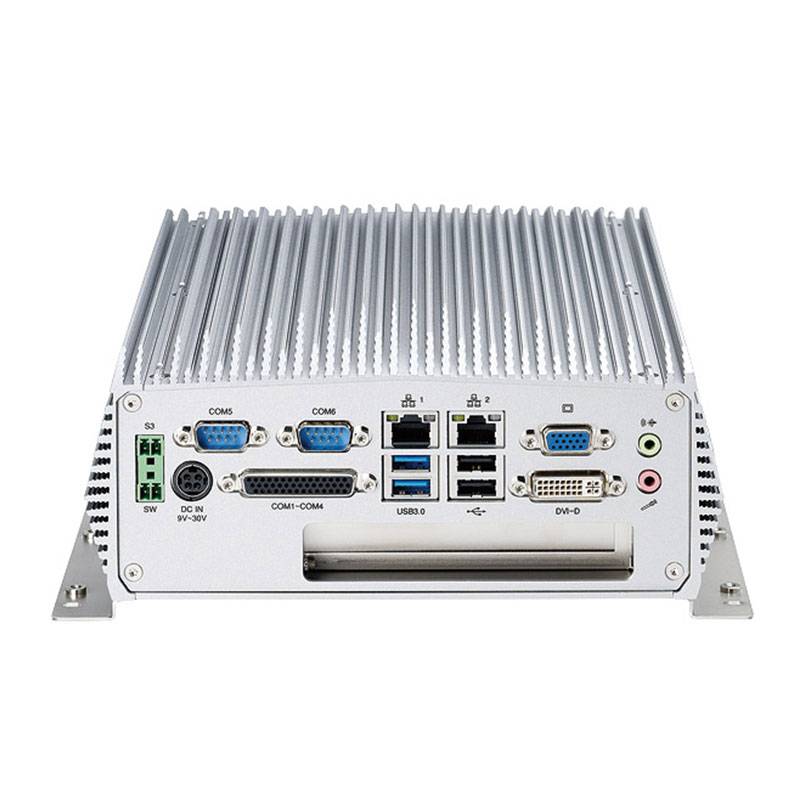

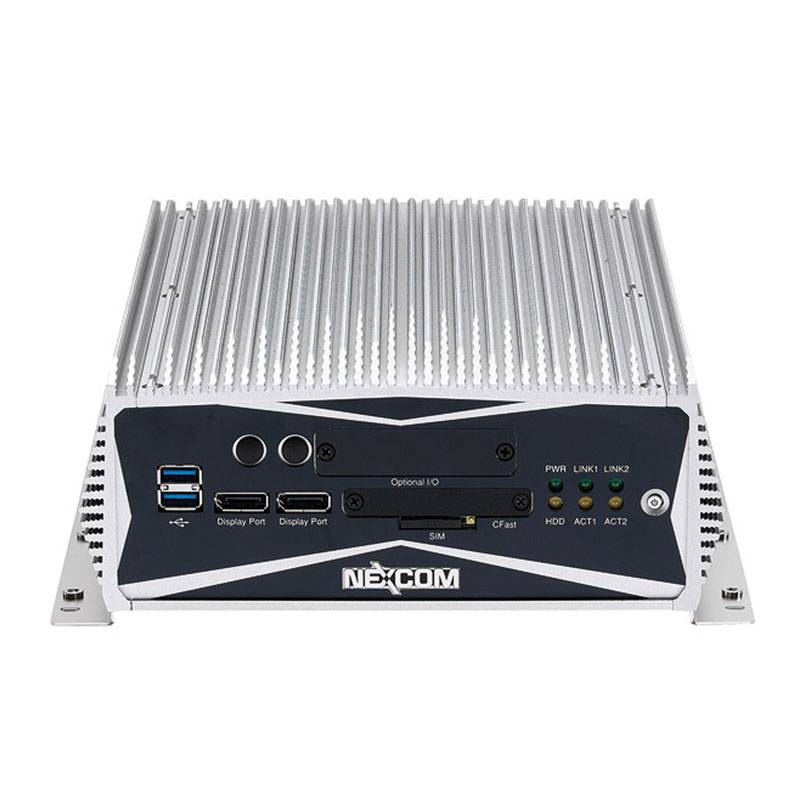

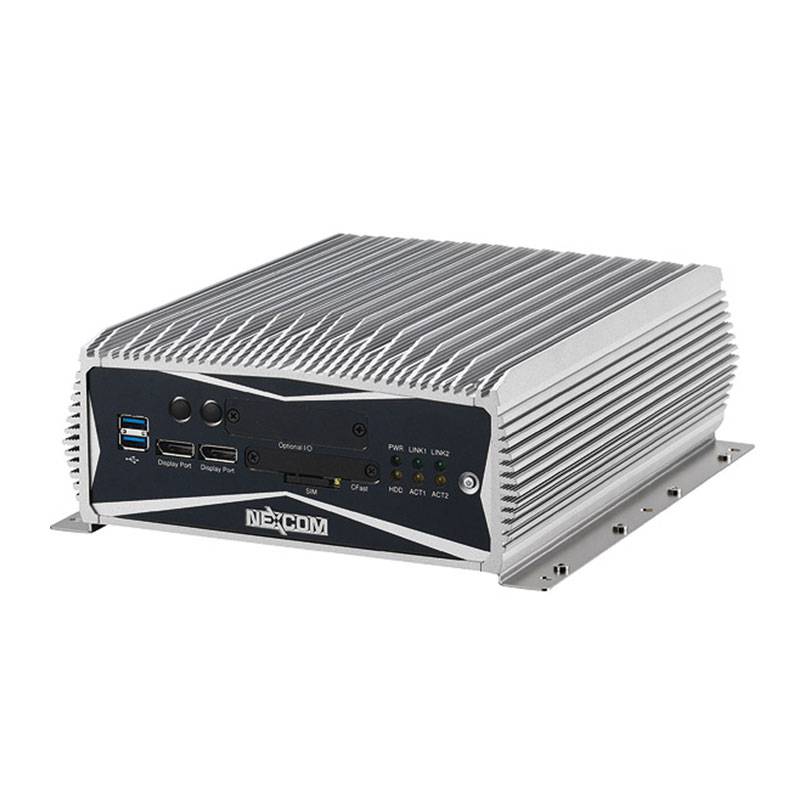

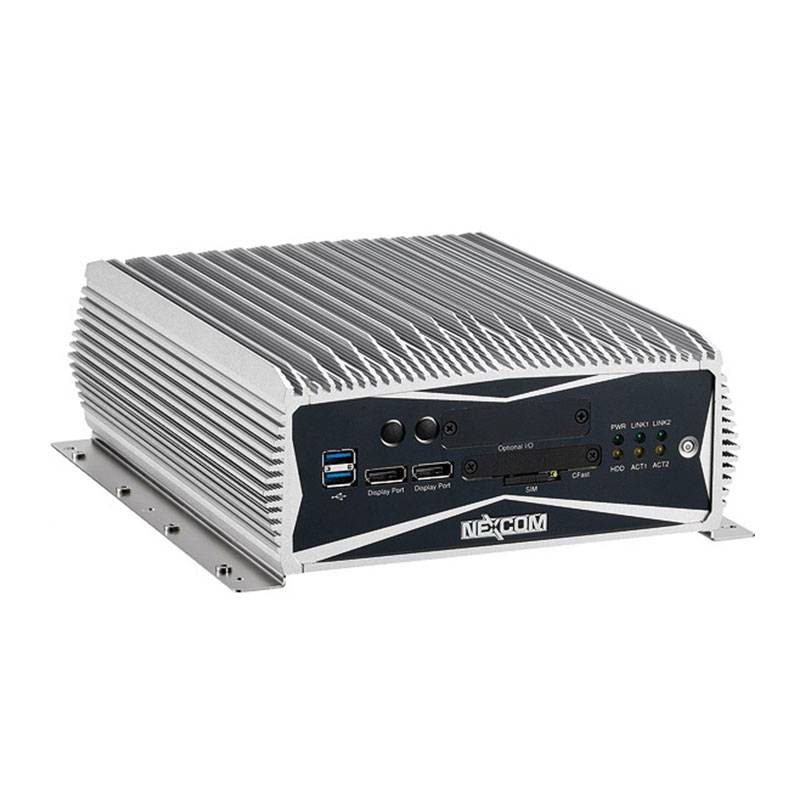

3rd Generation Intel® Core™ i7/i5/i3 Fanless System with one PCIex4 Expansion

功能簡介

• Support 3rd generation Intel® Core™ i7/i5/i3 rPGA socket type processor
• Mobile Intel® QM77 PCH
• Support 1x 2.5" SATA HDD or 2x SATA DOM
• 1x VGA, 1x DVI-D and 2x Display port with Independent Display support
• Dual Intel® GbE LAN ports; Support WoL, Teaming and PXE
• 4x USB 3.0, 2x USB 2.0, 5x RS232 and 1x RS232/422/485
• 1x internal Mini-PCIe socket support Wifi or 3.5G module
• 1x external CFast socket, 1x SIM card socket, One PCIex4 expansion
• Support +9V to 30VDC input; Support ATX power mode
• One PCIe x4 expansion
